How do I enable Audio over coax on my X-Series XVR to support audio over coax compatible cameras?

Applies to Product: XVR8-4K-AI, XVR16-4K-AI & XVR32-5MP-AI
Applies to Firmware: All firmware

To enable audio over coaxial cable on your X-Series XVR device, follow these steps:

1. Position yourself in front of the XVR device, ensuring it is connected to a monitor.
2. Connect a mouse to the device.
3. Access the main menu by navigating to the "Setup" option.

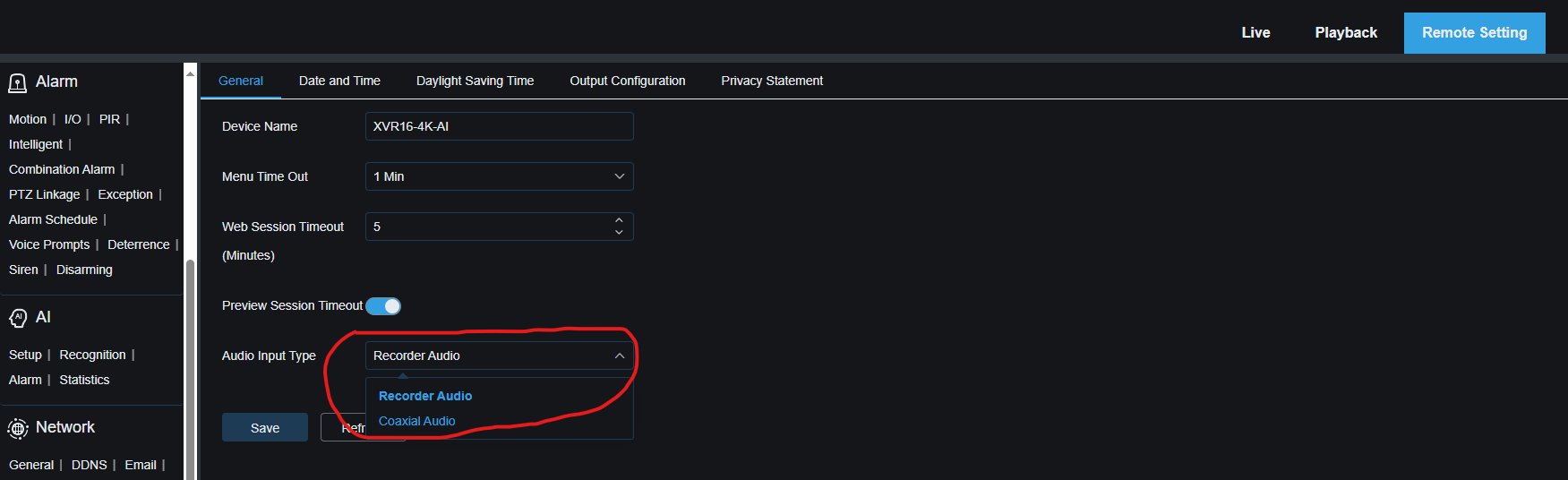

4. From the main menu, select System > General.
5. Locate the option labeled Audio Input Type (typically the last option in the menu).
6. Set Audio Input Type to Coaxial Audio.
7. Click Save to apply the changes.
