How to setup Object Detection on my X-Series device?

The Object Detection function on X-Series devices is designed to identify objects such as baggage, purses, or potentially dangerous materials left or lost within a pre-defined region. Utilizing advanced video analytics, the system monitors the designated area for objects that remain stationary beyond a specified duration. When such an object is detected, the system triggers an alarm, enabling a series of customizable actions, such as sending notifications to personnel or activating security protocols, to ensure safety and prompt response in environments like airports, public spaces, or critical infrastructure.

Step 1: Access the Device

• Log in to your X-Series device using your credentials.

Step 2: Navigate to the Object Detection Settings

• Go to Main Menu > Setup > AI > Setup > Object Detection tab.

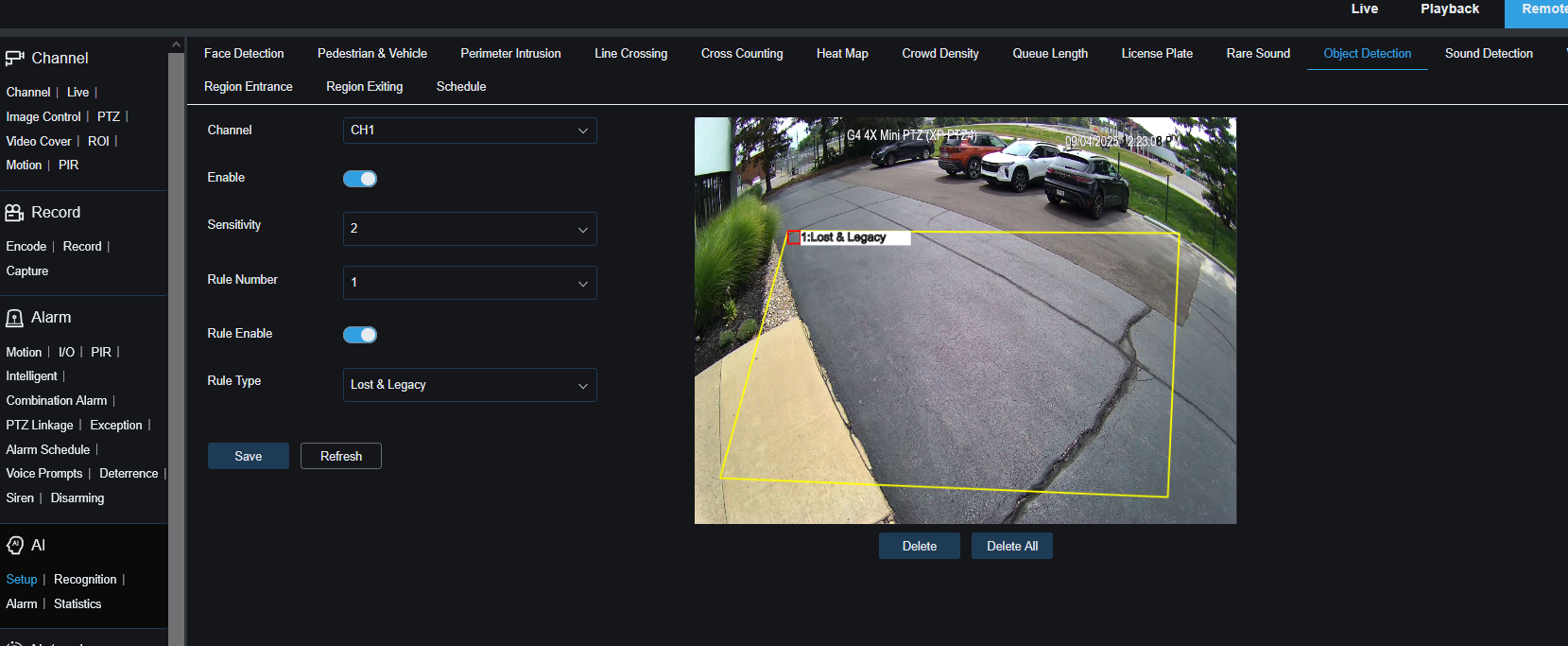

Step 3: Configure Object Detection Settings

Adjust the following options to meet your requirements:

• Channel: Select the camera channel to configure for Object Detection .
• Enable: Toggle this option to activate the Object Detection feature for the selected channel.
• Sensitivity: Adjust the sensitivity level for detecting objects. Higher values increase sensitivity, while lower values reduce false triggers.
• Rule Number: Select the rule to configure (up to 4 rules can be set per channel).
• Rule Enable: Toggle to activate the selected rule.

• Rule Type: There are three types of rules you can setup.

   Lost: Detects items that are left behind or abandoned in the area of interest, such as unattended baggage or packages.

  Legacy: Identifies items that have been removed from the area of interest, such as objects taken from a designated location.

  Both: Enables simultaneous detection of both lost and removed items, providing comprehensive monitoring for added security.

Step 4: Save Settings

• Click Save to apply all configured settings.

Scheduling Object Detection on X-Series Devices

To ensure the Object Detection feature on your X-Series device is active during specific times, you next need to configure a schedule for when the AI feature operates. Follow these steps to set up the schedule for Object Detection.

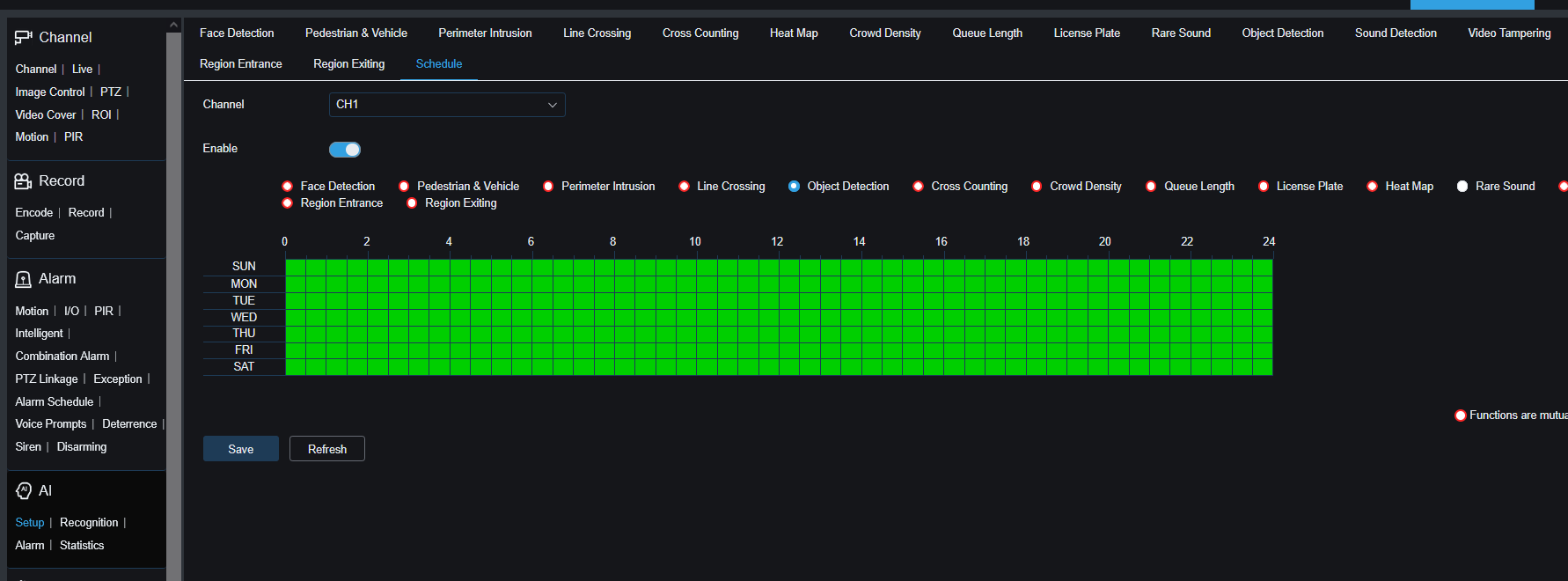

Step 6: Configure the Object Detection Schedule

1. Navigate to Main Menu > Setup > AI > Setup > Schedule.
2. Select the Channel you want to schedule Object Detection for.
3. Click the Enable option to activate scheduling for the selected channel.
4. From the list of available AI features, select Object Detection.
5. In the schedule interface, click and drag to draw a box around the days of the week and hours of the day when you want the Object Detection feature to be active.
6. (Optional) Use the Copy option to apply the same schedule to other channels, if desired, or configure each channel individually.
7. Click Save to confirm the schedule settings.

Configuring Triggered Actions for Object Detection on X-Series Devices

To enhance the functionality of Object Detection on your X-Series device, you can configure specific actions to trigger when a Object Detection event is detected. This step is optional but allows for customized responses such as notifications, recordings, or alerts. Below are the steps to set up triggered actions.

Step 7: Configure Triggered Actions (Optional)

1. Navigate to Main Menu > Alarm > AI > Object Detection.
2. Set up the desired actions to trigger when a object detection event is detected:
   • Channel: Select the camera channel to apply the alarm settings to.
   • Buzzer: Enable to make the XVR/NVR emit a beep when a Object Detection is detected.
   • Latch Time: Specify the duration (in seconds) for the buzzer to sound after detection.
   • Post Recording: Set the duration (in seconds) for the device to continue recording after the Object Detection event ends.
   • Send Email: Enable to send an email notification when a Object Detection occurs (requires email configuration in Network Settings).
   • Show Message: Enable to display an on-screen message when a Object Detection is detected.
   • Full Screen: Enable to display the camera feed in full-screen mode upon detection.
   • FTP Picture & Video Upload: Enable to upload pictures or videos to an FTP server when a Object Detection occurs (requires FTP configuration in Storage Settings).
   • Cloud Picture & Cloud Video: Enable to upload pictures or videos to a cloud storage service when a Object Detection occurs (requires cloud configuration in Storage Settings).
   • Enable Record: Enable to initiate recording when a Object Detection is detected.
   • Record Channel: Select the channel(s) to record upon detection. By default, the configured channel is selected, but additional channels can be included if desired.
3. Click Save to confirm the alarm settings.
